1. Introduction to SHUYI 11kW Motor Soft Starter

Designed for industrial reliability, the SHUYI 11kW motor soft starter ensures seamless motor startups while reducing inrush current and mechanical stress. Ideal for pumps, fans, and conveyors, this model balances performance with energy efficiency, making it a versatile choice for medium-load systems. Its adjustable parameters and user-friendly design simplify installation and operation, catering to both new setups and system upgrades.

Want to learn more about our products? You can click me.

2. Critical Installation Parameters

Proper installation is key to unlocking the soft starter’s full potential:

• Power Supply Requirements:
  • Input voltage: AC 380V (-10% ~ +15%), 50Hz/60Hz, compatible with global power grids.
  • Rated current: 23A, precisely matched to the motor’s full-load current for safe, efficient operation.
• Environmental Specifications:
  • Temperature: -25°C to +40°C (derate above 2000m altitude to maintain performance).
  • Protection class: IP20, suitable for indoor environments with moderate dust and moisture exposure.
• Wiring Recommendations:

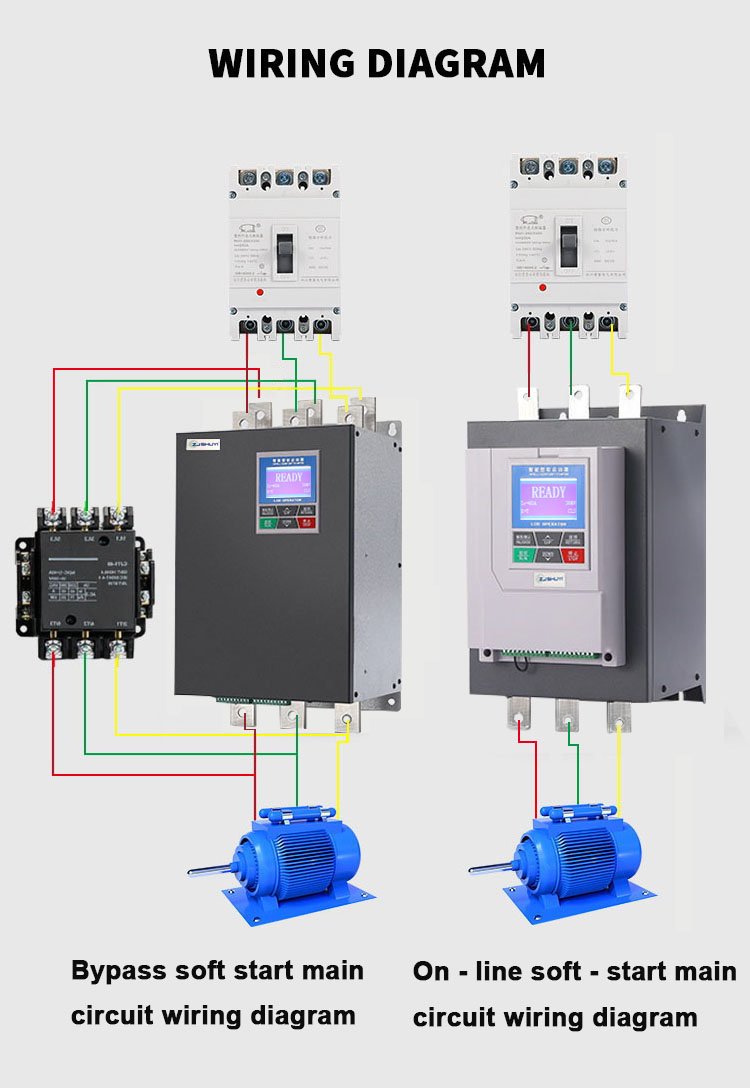

  • Connect three-phase power to terminals R, S, T and the motor to U, V, W using 6mm² copper cables.
  • Tighten terminals to manufacturer-recommended torque to ensure secure, low-resistance connections.

3. Operation Parameters for Stable Performance

The soft starter offers flexible settings to adapt to different load demands:

• Starting Modes:
  • Current Limit Start (Default): Restricts starting current to 300% of rated value, protecting grids from excessive inrush.
  • Voltage Ramp Start: Gradually increases voltage from 35% to 100% over 15 seconds, minimizing mechanical stress on drivetrains.
• Stop Modes:
  • Free Parking: Natural, inertia-based deceleration for most industrial applications.
  • Soft Parking (1–60s): Customizable for fluid systems to prevent water hammer effects and extend pipeline life.
• Control Methods:
  • Default: Keyboard + external control for local and remote operation.
  • Optional: MODBUS RTU communication for advanced monitoring and parameter adjustment via SCADA systems.

4. Robust Protection Features

Built-in safeguards ensure long-term reliability and safety:

• Overload Protection:
  • Adjustable levels (0–30) with inverse time-limit control, triggering shutdowns to prevent motor damage during sustained overloads.
• Voltage Protection:
  • Overvoltage: Activates at 120% of rated voltage (5s delay) to shield against grid fluctuations.
  • Undervoltage: Activates at 80% of rated voltage (5s delay) to prevent unstable operation.
• Additional Safeguards:
  • Phase loss detection for input/output circuits, avoiding unbalanced operation.
  • Thermal protection to shut down during excessive heating, ideal for frequent start-stop cycles.

5. Applications and Best Practices

The SHUYI 11kW motor soft starter excels in diverse industrial scenarios:

• Manufacturing: Ensures smooth operation of conveyor belts and small pumps, enhancing production consistency.
• Water Treatment: Reduces pressure surges in pipelines with soft parking, critical for maintaining infrastructure integrity.
• HVAC Systems: Efficiently controls fan motors with adjustable torque, adapting to varying load requirements while minimizing energy waste.

Optimization Tips:

• Calibrate phase currents (C22–C24) using the LCD display to match actual motor values for accurate monitoring.
• Regularly review the last 12 fault records (a built-in feature) to address recurring issues promptly.

Conclusion

The SHUYI 11kW motor soft starter combines precise installation parameters, flexible operation modes, and robust protection features to deliver reliable motor control. By leveraging its adaptive settings, users can achieve reduced downtime, improved energy efficiency, and extended equipment lifespan. Whether for industrial machinery, pumps, or fans, this model ensures stable performance and ease of use, making it a valuable addition to any motor control system.
