Name: CJX2-80 with Silver Content 85% 380V 3 pole modular household ac contactor - cnshuyi
SKU: 1005002297797736
Price: 23.00 USD
Availability: InStock

Previous slide

Next slide

CJX2-80 with Silver Content 85% 380V 3 pole modular household ac contactor

SKU 1005002297797736 Categories AC Contactor, Related Components

$23.00

2000 in stock

Parameter

Additional information

Origin	Mainland China
Certification	CE
Phase	3
Electricity Type	AC
Model Number	CJX2-80
Main Circuit Rating Current	160A
Main Circuit Rating Voltage	380V
Number of Pole	3
Application	Electrical Power
Standard	IEC60947
Coil Voltage	380VAC
Frequency	50/60 HZ
Contact material	silver
Rated Current	9A-95A
Max rated voltage	1000v

NOTE:

Hello friend, welcome to our store: SHUYI Electric Store. As freight template on the platform is not standard, please communicate with customer service before payment, and the freight can be modified according to the actual price.

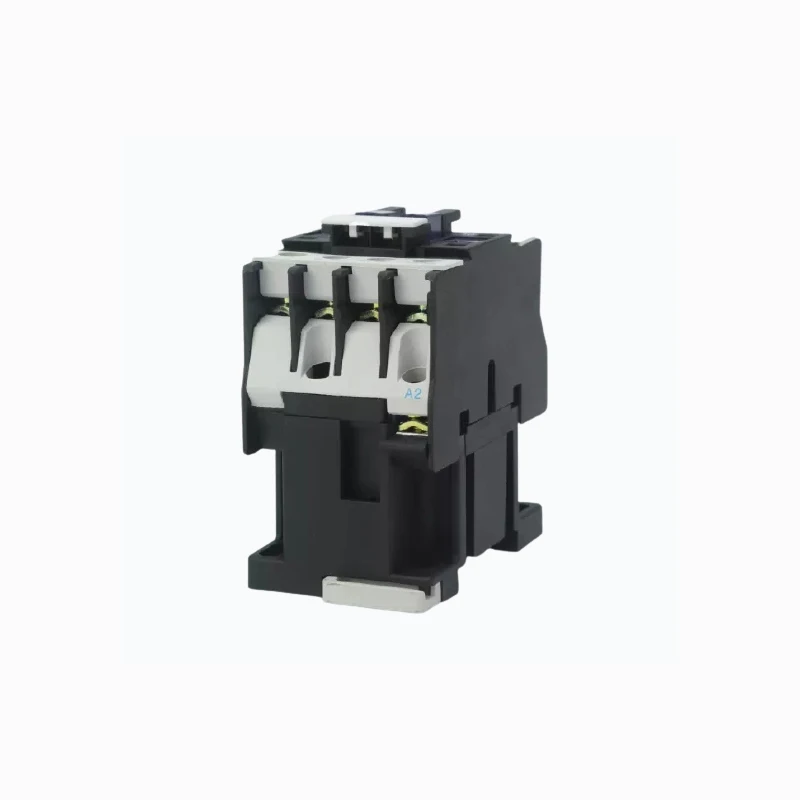

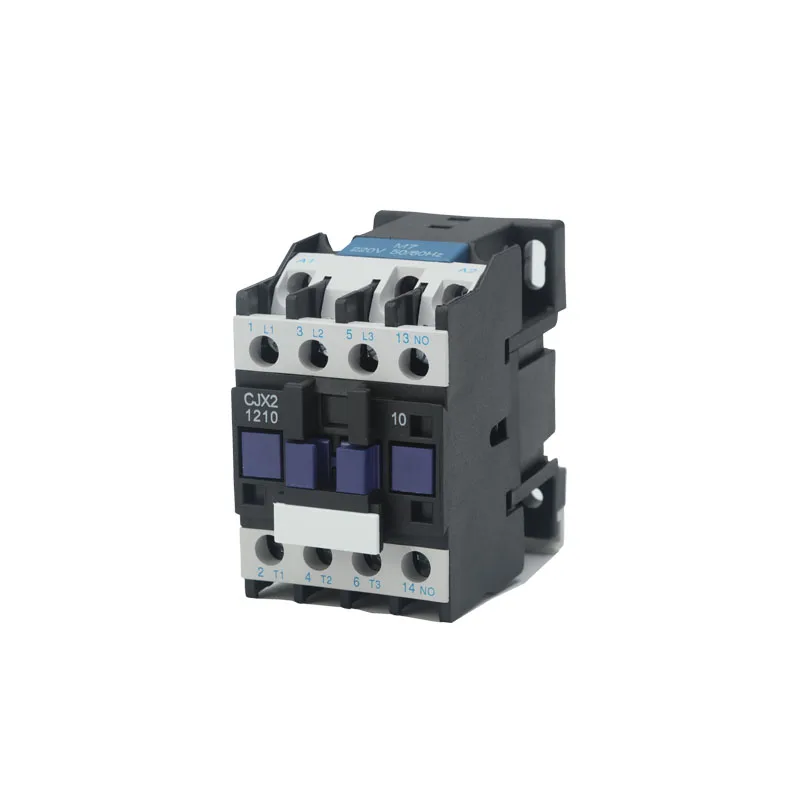

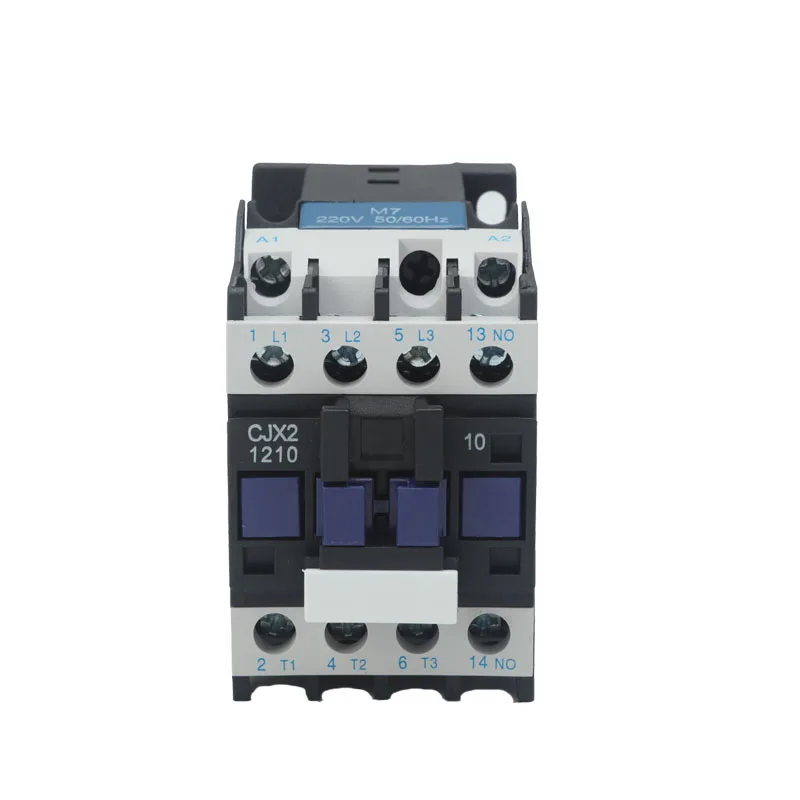

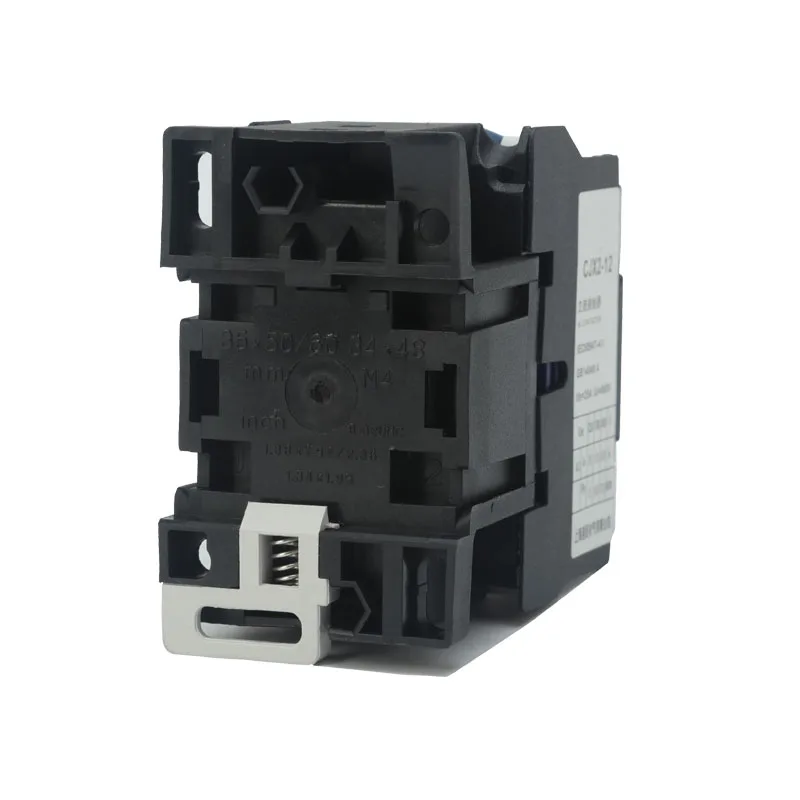

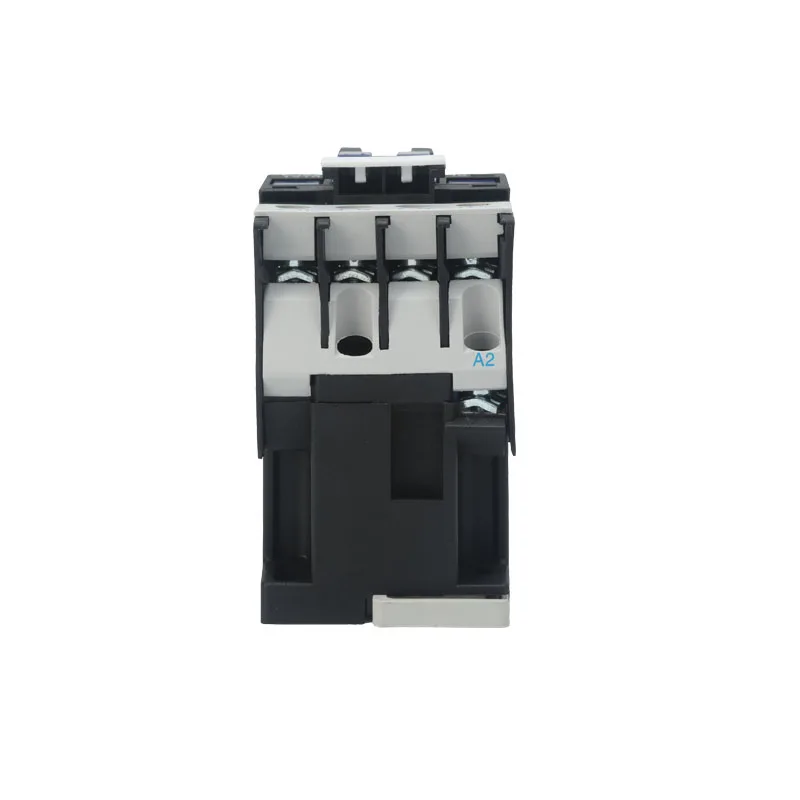

Product Display

CJX2-80 with Silver Content 85% 380V 3 pole modular household ac contactor

Application:

CJX2 series AC contactor(simplified as contactor in the following)is suitable for

using in thecircuits up to the rated voltage 660VAC 50Hz or 60Hz, rated current 95A,

for making and breaking and frequent starting.

It is combined into the delay contactor, mechanical interlocking contactor,

star-delta starter, with the thermal relay. it is combined into the electromagnetic starter.

Technical Specification:

This series of products are up to standard:IEC60947-4; GB14048.4

Outshape dimensions and mounting dimensions:
