Name: AD800-4T2.2GB Series Vector Control 2.2KW 380V Variable Frequency Drive For Water Pump And Extruding Machine - cnshuyi
SKU: 1005005055753404
Price: 108.00 USD
Availability: InStock

Previous slide

Next slide

AD800-4T2.2GB Series Vector Control 2.2KW 380V Variable Frequency Drive For Water Pump And Extruding Machine

SKU 1005005055753404 Categories AD800 Series, Frequency Inverter

$108.00

500 in stock

Parameter

Additional information

Origin	Mainland China
Size	281821CM
Output Frequency	0-60HZ
Output Type	triple
is_customized	Yes
Output Power	2.2KW
Weight	4kg
Model Number	AD800-4T2.2GB
Certification	CE
Color	Black
Type	frequency inverter
Warranty	24 Months
Protection	IP20
IP20	vf, vector control
protection function	20 kinds of motor protection
torque response	< 20ms (SVC)
starting torque	induction motor: 0.25Hz/150% (SVC)
Overload tolerance	150% rated current 60s
speed fluctuation	±0.3% ( sensorless vector control)

NOTE:

Hello friend, welcome to our store. As freight template on the platform is not standard,

please communicate with customer service before payment, and the freight can be modified

according to the actual price. Thanks for your attention.

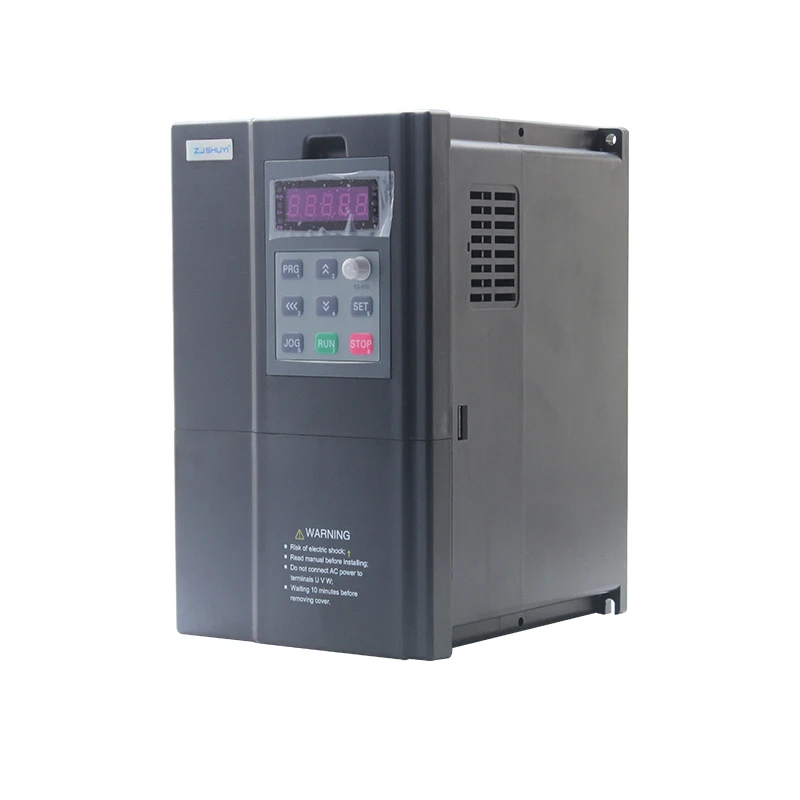

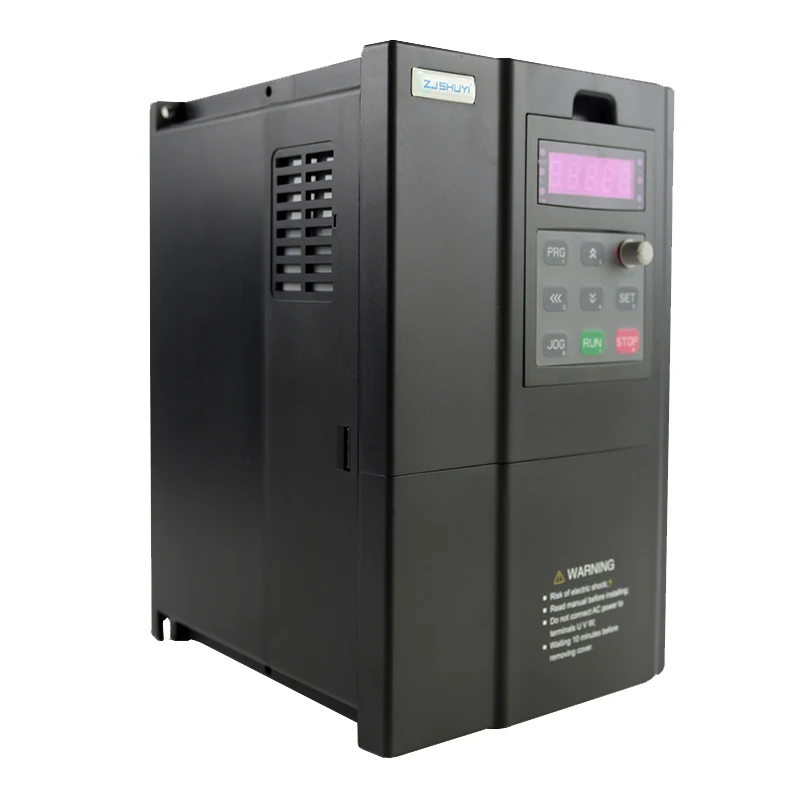

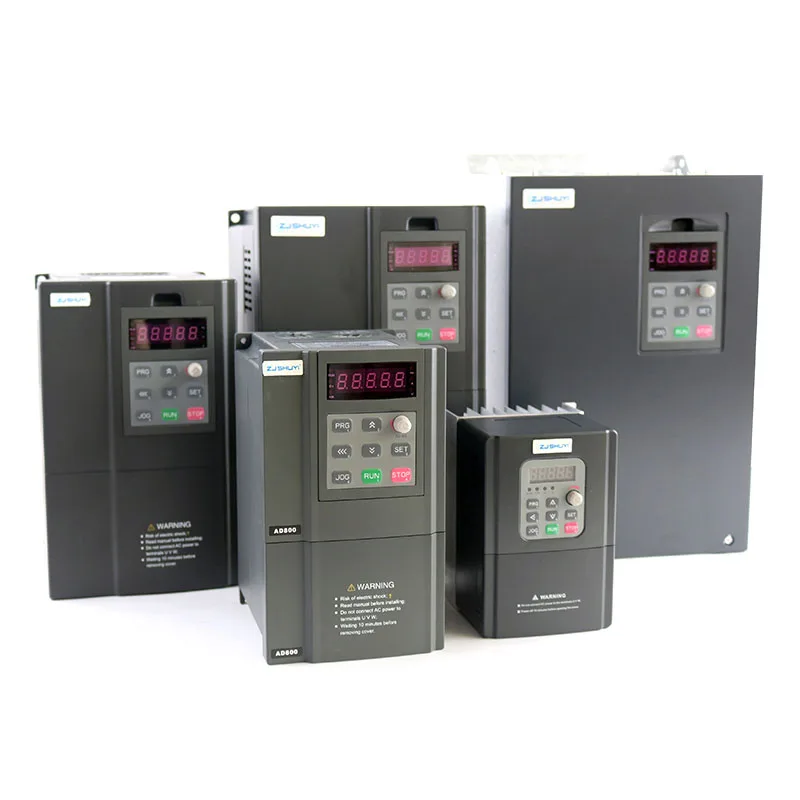

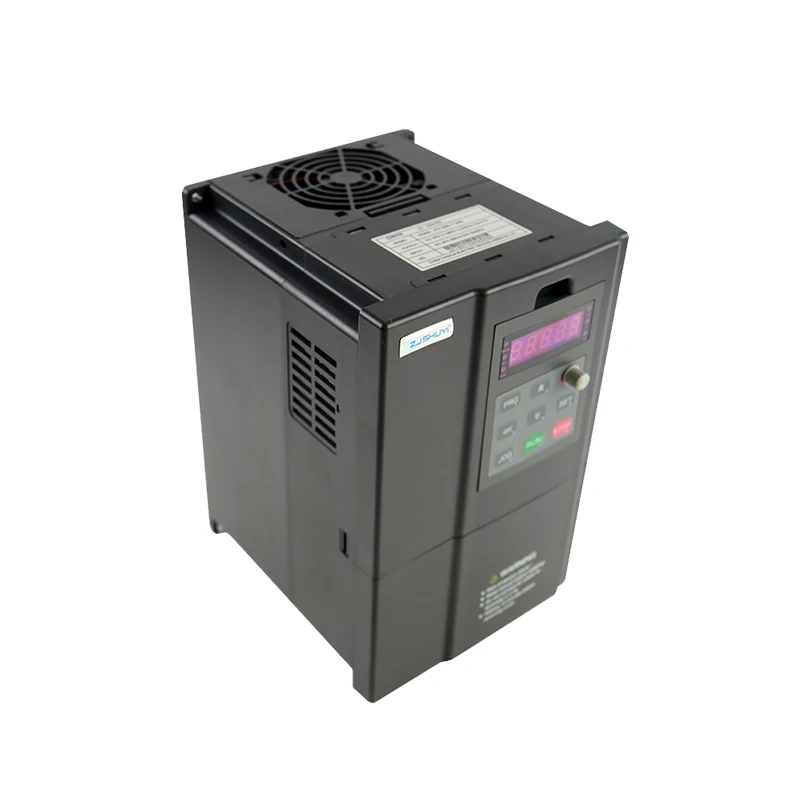

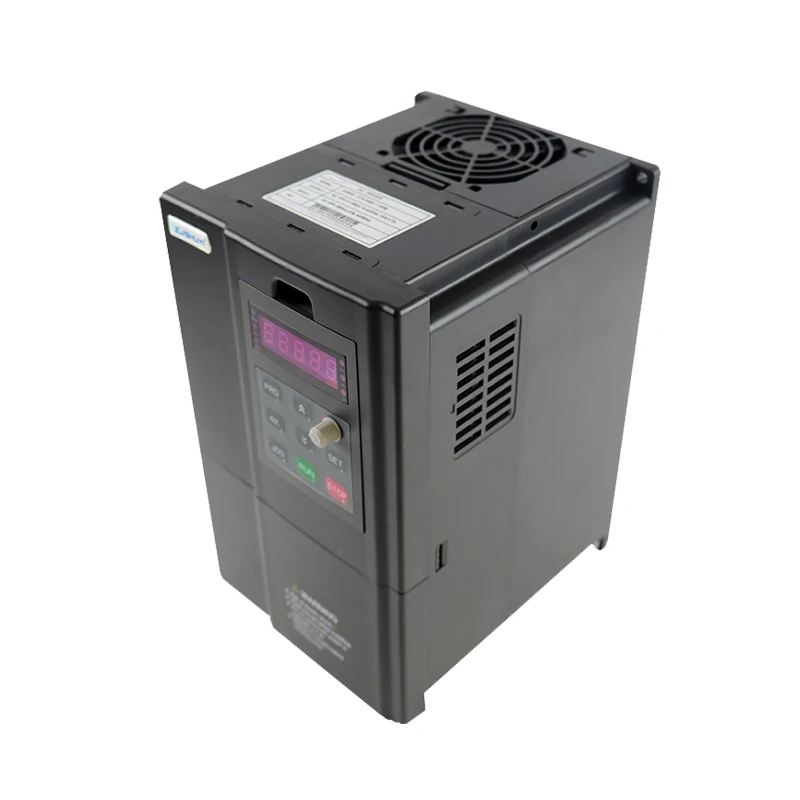

Product Display

AD800-4T2.2GB 380V 1.5KW frequency inverter

Model Number	AD800-4T2.2GB
Power range	3phase AC 380V (-15%~+30%) 0.75~500KW
Output Frequency Range	0~600Hz
Control Mode	V/F Control, Sensorless Vector Control, Torque Control
Starting Torque	0.5Hz/150%(SVC), 1Hz/150%(V/F);
Communication port	RS-485, which support MODBUS protocol
OEM	Avaliable
Fault Protection	protect from over current, over voltage, under voltage, over temperature, phase failure, over load etc.

Features:

AD350 high performance vector control mini frequency inverter is KEWO independently developed new generation general purpose electrical motor controller. With a new generation of high-performance advanced vector control technology applying, high torque control even under low speed, high speed precision, quick torque response and high speed range are available for sophisticated motor control. It is featured to have modular design, small size, small temperature rise, low noise, and reliable performance. It has built in simple PLC, PID adjusting, programmable input and output terminals function, RS458 terminals, multi function analog input and output function. ect.

Typical application:

Pump: make use of soft stop function to relieve the influence of water hammer so as to save system maintenance cost.
Ball mill: make use of voltage ramp startup to reduce gear torque friction so as to save cost and time.
Fan: reduce belt friction and mechanical conflict to save maintenance cost.
Compressor: make use of current limitation function to realize smooth startup so as to reduce motor heating and prolong its service life.
Conveyor: make use of soft start to realize smooth and gradual startup process in order to avoid product move and liquid overflow.
